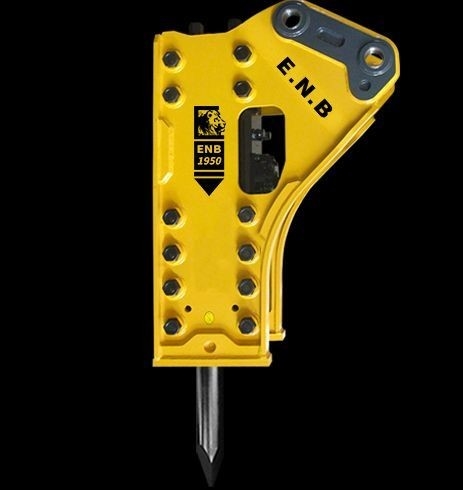

Side Type Breaker ENB1950

Side Type Breaker ENB1950

INTRODUCTION

Adopt the optimized design scheme, have the strong impact force,

as far as possible use a smaller number of components manufactured,

the number of accessories, less trouble, easy to repair and maintenance.

VIDEO GALLERY

ENGINEERING CASE

SPECIFICATIONS

PARAMETER	PARAMETER VALUE
WEIGHT（kg）	4950
LENGTH（mm）	3420
DRIVING OIL PRESSURE（kg/cm²）	230～240
DRIVING OIL QUANTITY（l/min）	220～290
BEAT FREQUENCY（bmp）	120～180
DRILL ROD DIAMETER（mm）	195
EQUIPPED VEHICLE WEIGHT（ton）	48～60
