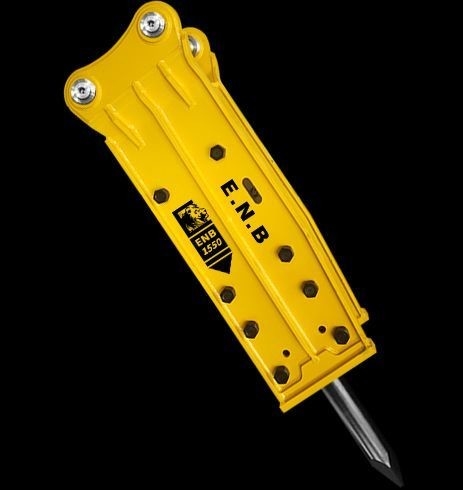

Top Type Breaker ENB1550

Top Type Breaker ENB1550

INTRODUCTION

Adopt new material to make the parts stronger and more

resistant to fatigue.

Wear-resistant high strength steel plate is used externally to

further improve the durability and life span of the machine.

VIDEO GALLERY

ENGINEERING CASE

SPECIFICATIONS

PARAMETER	PARAMETER VALUE
WEIGHT（kg）	2900
LENGTH（mm）	2905
DRIVING OIL PRESSURE（kg/cm²）	160～180
DRIVING OIL QUANTITY（l/min）	180～240
BEAT FREQUENCY（bmp）	300～450
DRILL ROD DIAMETER（mm）	155
EQUIPPED VEHICLE WEIGHT（ton）	28～35
