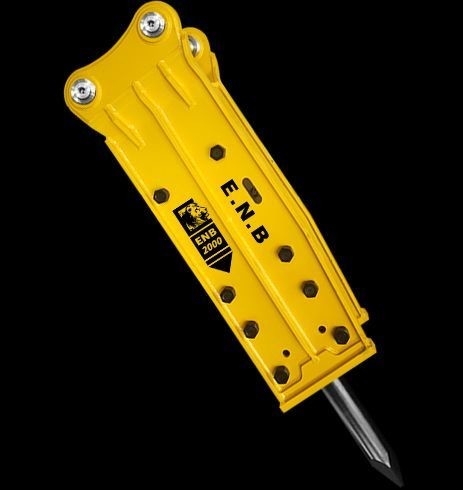

Top Type Breaker ENB2000

Top Type Breaker ENB2000

INTRODUCTION

Adopt new material to make the parts stronger and more

resistant to fatigue.

Wear-resistant high strength steel plate is used externally to

further improve the durability and life span of the machine.

VIDEO GALLERY

ENGINEERING CASE

SPECIFICATIONS

PARAMETER	PARAMETER VALUE
WEIGHT（kg）	5620
LENGTH（mm）	4188
DRIVING OIL PRESSURE（kg/cm²）	230～240
DRIVING OIL QUANTITY（l/min）	250～320
BEAT FREQUENCY（bmp）	110～140
DRILL ROD DIAMETER（mm）	200
EQUIPPED VEHICLE WEIGHT（ton）	48～70
