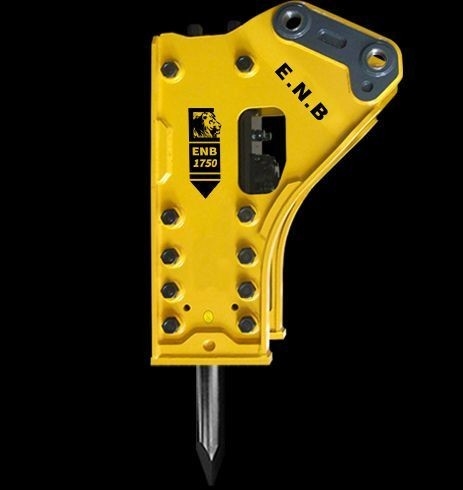

Side Type Breaker ENB1750

Side Type Breaker ENB1750

INTRODUCTION

Adopt the optimized design scheme, have the strong impact force,

as far as possible use a smaller number of components manufactured,

the number of accessories, less trouble, easy to repair and maintenance.

VIDEO GALLERY

ENGINEERING CASE

SPECIFICATIONS

PARAMETER	PARAMETER VALUE
WEIGHT（kg）	3788
LENGTH（mm）	3189
DRIVING OIL PRESSURE（kg/cm²）	160～180
DRIVING OIL QUANTITY（l/min）	210～290
BEAT FREQUENCY（bmp）	200～350
DRILL ROD DIAMETER（mm）	175
EQUIPPED VEHICLE WEIGHT（ton）	40～55
