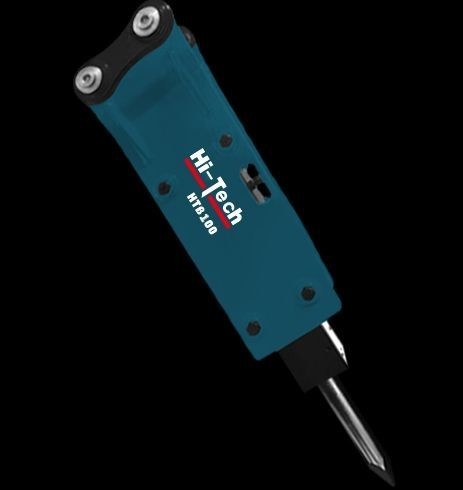

Top Type Breaker HTB100

Top Type Breaker HTB100

INTRODUCTION

Suitable for any construction site, high quality and durable

1. Adopt the shortest piston oil channel to reduce recoil

2. Adjust the strike energy according to the hardness of the material

3. Low noise and low failure rate

VIDEO GALLERY

ENGINEERING CASE

SPECIFICATIONS

PARAMETER	PARAMETER VALUE
WEIGHT（kg）	120
LENGTH（mm）	1344
DRIVING OIL PRESSURE（kg/cm²）	90～121
DRIVING OIL QUANTITY（l/min）	20～50
BEAT FREQUENCY（bmp）	600～1100
DRILL ROD DIAMETER（mm）	53
EQUIPPED VEHICLE WEIGHT（ton）	2.5～4.5
