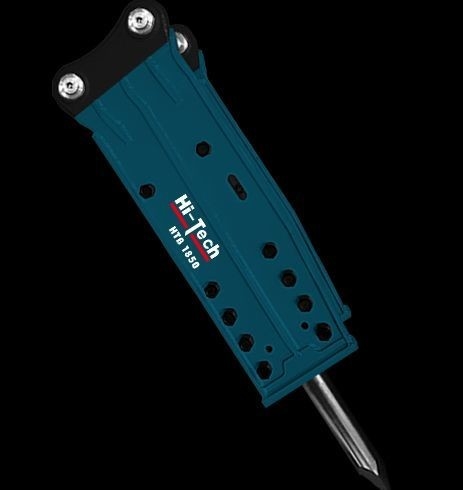

Top Type Breaker HTB1850

Top Type Breaker HTB1850

INTRODUCTION

Suitable for any construction site, high quality and durable

1. Adopt the shortest piston oil channel to reduce recoil

2. Adjust the strike energy according to the hardness of the material

3. Low noise and low failure rate

VIDEO GALLERY

ENGINEERING CASE

SPECIFICATIONS

PARAMETER	PARAMETER VALUE
WEIGHT（kg）	4844
LENGTH（mm）	3945
DRIVING OIL PRESSURE（kg/cm²）	230～240
DRIVING OIL QUANTITY（l/min）	220～290
BEAT FREQUENCY（bmp）	120～180
DRILL ROD DIAMETER（mm）	185
EQUIPPED VEHICLE WEIGHT（ton）	45～55
